Fixplus Pedestals and Tile Supports

Adjustable, modular support systems for raised flooring over waterproofed roofs and decks, compatible with a wide range of surface finishes.

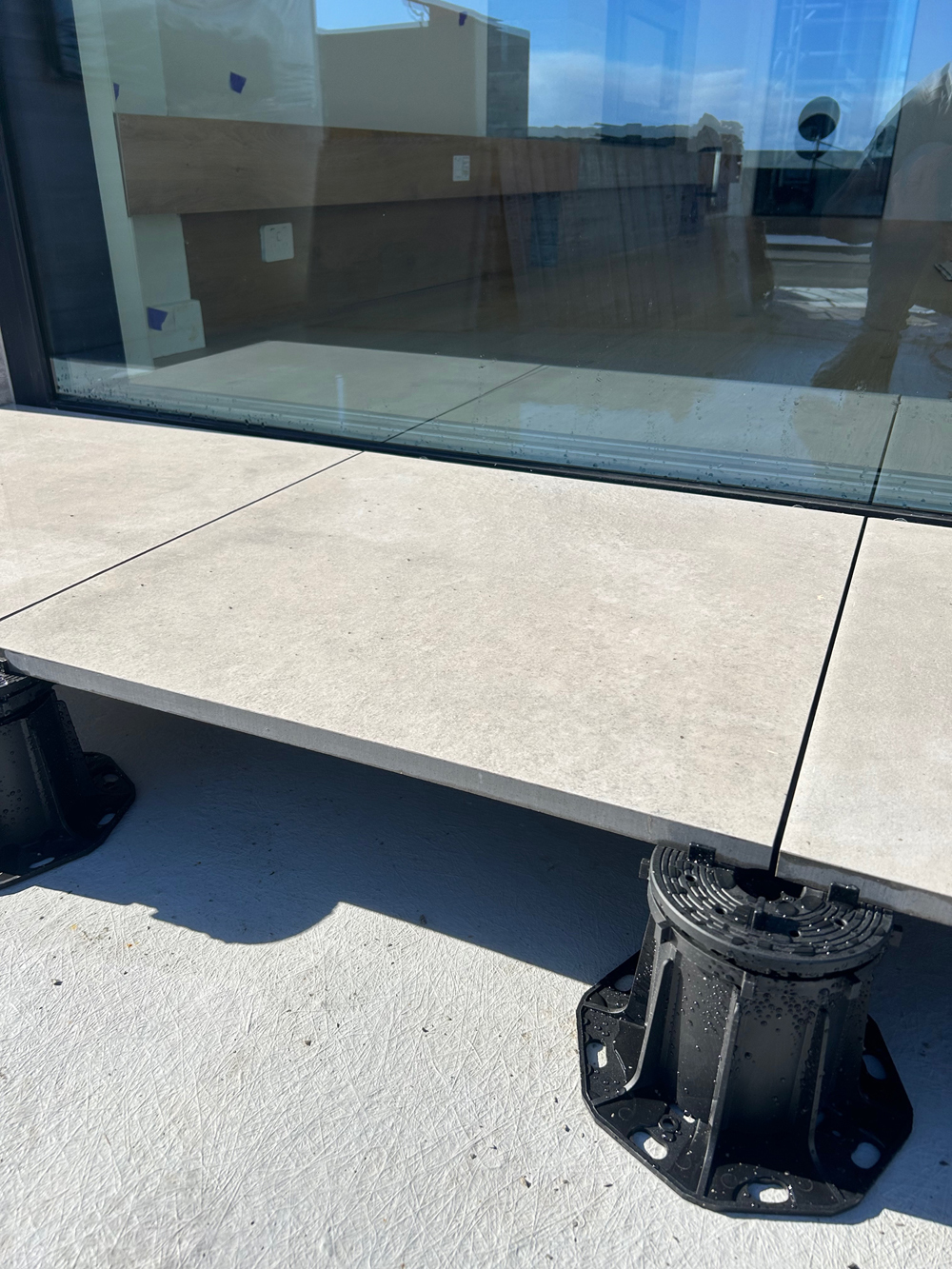

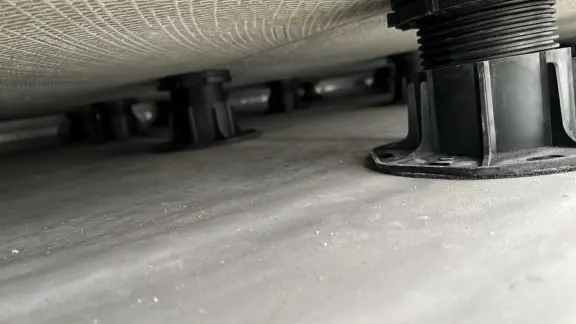

The Fixplus Pedestal and Tile Support range provides an adjustable system for raised flooring over membrane roofs and decks. Compatible with tiles, timber, and aluminium decking, the pedestals create a level, stable surface while protecting the underlying waterproofing.

Available in fixed or self-levelling options, the system offers multiple height ranges and installation accessories for accurate setup. The raised-floor cavity promotes drainage, extends membrane life, and provides space for services such as cables and pipework.

Fixplus pedestals integrate seamlessly with Equus waterproofing systems for residential and commercial applications.

Logo Fixplus

Documents

4381EF Fixplus Deck & Tile Support System Masterspec
PDF
RFS Residential Apartments Mt Maunganui Fixplus
RFS Luxury Townhouses AKL Fixplus
TDS Fixplus Pedestal System
TDS SLW110 Maxi Raft SL Pedestal
TDS SL110 Maxi SL Pedestal
TDS SL60 Basic SL Pedestal
TDS BS60 Basic Pedestal
Fixplus Pedestals & Tile Support System Brochure
Fixplus Pedestals (Short Version) Brochure

Key Product Benefits:

  • Self-levelling or fixed options for a flat, stable surface
  • Simple installation and fully reusable components
  • Supports tiles, decking beams, and other modular flooring systems
  • Load capacity up to 1500kg
  • Creates a service cavity for cables, lighting, and concealed infrastructure
  • Protects the membrane by separating traffic from the waterproofing layer

Components

BS60 03

BS60 Basic Series

BS60-03 (50-75mm)



BS60-04 (73-110mm)

SL60 04sq

SL60 Basic Self Levelling Series

SL60-01 (42-48mm)



SL60-02 (48-60mm)



SL60-03 (60-85mm)



SL60-04 (83-120mm)

SL110 07sq

SL110 Maxi Self Levelling Series

SL110-04 (85-135mm)



SL110-05 (130-180mm)



SL110-06 (180-228mm)



SL110-07 (224-272mm)

SLW110 07sq

SLW110 Maxi Raft Self Levelling Series

SLW110-04 (85-135mm)



SLW110-05 (130-180mm)



SLW110-06 (180-228mm)



SLW110-07 (224-272mm)

WC9801sq

Basic Parallel (Beam Joint) Connector

WC9801

TC 2mm sq

Replaceable Grout Tabs

TC0002 2mm



TC0003 3mm



TC0004 4mm

Pedestal Accessories

DC9801 HC9801

Basic Disc and Rubber Shim

DC9801-HC9801

M06050 M06075sq

Pedestal Extensions

M06050-M06075

LD0001 LD0002sq

Lateral Flooring Installation

LD0001-LD0002

SLC001sq

Maxi Self Levelling Disc Pad

SLC001

W14001 W14002sq

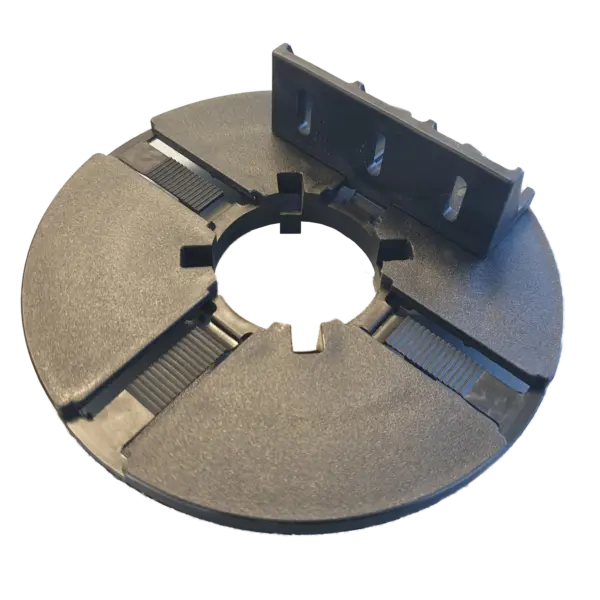

Maxi Raft Disc and Beam Joint Connector

W14001-W14002

Adjustment tool copy

Adjustment Tool

Certified Installation

Installed by trained, approved professionals to ensure quality and lasting performance.
