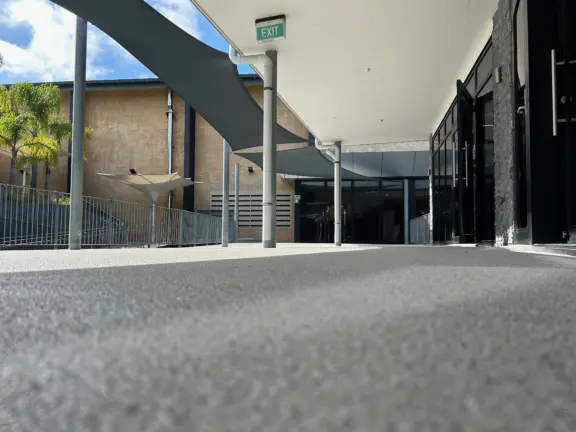

IMG 2636

Matacryl Pedestrian Waterproofing

Matacryl Pedestrian is an exterior PUMMA waterproofing system for concrete decks, providing a durable, flexible, slip-resistant finish for balconies, walkways, and pedestrian traffic areas.

Matacryl Pedestrian is a liquid-applied elastomeric waterproofing system designed to protect concrete decks, balconies, ramps, and walkways. The system uses urethane-modified PUMMA resins to create a highly flexible, crack-bridging membrane that maintains performance even at low temperatures. Its rapid curing characteristics minimise downtime, making it suitable for occupied buildings or areas requiring fast return to service.

The multi-layer system includes a primer, waterproofing membrane layer, wear layer with aggregate, and two topcoats. It is available in both a painted finish and a decorative coloured quartz option to meet aesthetic or slip-resistance requirements. The cured membrane delivers excellent impact, puncture, and abrasion resistance, making it suitable for demanding pedestrian areas.

Matacryl membranes can also be used in specialised applications such as bridge decks, tunnels, channels, and sub-grade waterproofing. When installed by a certified applicator, the system carries a 10-year warranty.

Documents

Matacryl Waterproofing NZBC Compliance Technical Report
4432ET Matacryl Trafficable Waterproofing System Masterspec
PDF
QA Matacryl Pedestrian
PDF
RFS Apartment Entry AKL Matacryl Trafficable Under External Tiles
RFS City Impact School AKL Matacryl Pedestrian
RFS Mt Smart Stadium AKL Matacryl Pedestrian
TDS Matacryl Pedestrian System
TDS Duracon/Matacryl 2K FG Clear Topcoat
TDS Duracon 310/Matacryl 319
TDS Matacryl 215 WL
TDS Matacryl Catalyst
TDS Duracon 108/Matacryl 108 H Primer
TDS Duracon 107/Matacryl 107 CM Primer
TDS Matacryl STC
TDS Matacryl Thix
TDS Matacryl Manual
Document
PDF DWG
SDP Matacryl Pedestrian System
PDF
NZIA CPD Presentations Flyer
Specify with Confidence Flooring Systems Flyer
Equus Matacryl Pedestrian Membrane Brochure
BCP Matacryl Pedestrian Deck System
PDF
IP Matacryl Pedestrian Deck System
PDF

Key Product Benefits:

  • Highly flexible, crack-bridging waterproofing membrane
  • Rapid curing for minimal disruption
  • Slip-resistant wear layer with painted or decorative quartz finish
  • Excellent impact and puncture resistance
  • Strong adhesion to a wide range of substrates
  • Suitable for low-temperature applications
  • Easy to repair with excellent inter-layer bonding
  • Durable, chemical and abrasion-resistant exterior system

System Build

Matacryl Pedestrian is a multi-layer PUMMA system comprising:

  • Primer
  • Waterproofing membrane layer
  • Wear layer with aggregate or decorative quartz
  • Two topcoats for durability and UV stability

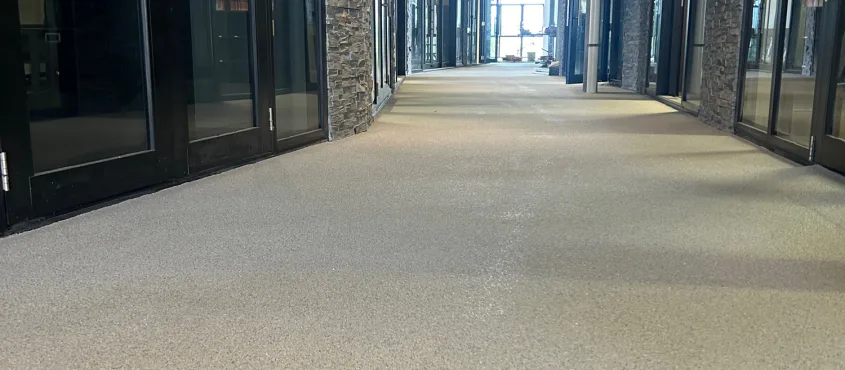

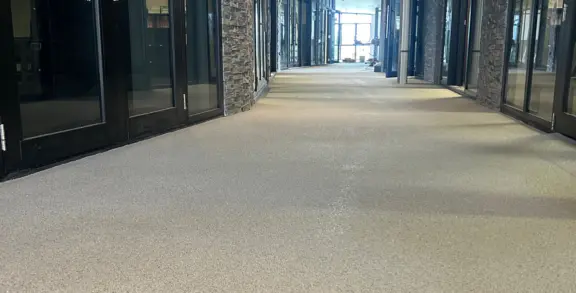

City impact matacry ped sm

Temperature & Application Range

  • Can be applied between –10°C and +35°C
  • Retains flexibility and crack-bridging performance at –20°C and below
  • Fully cured in approximately one hour

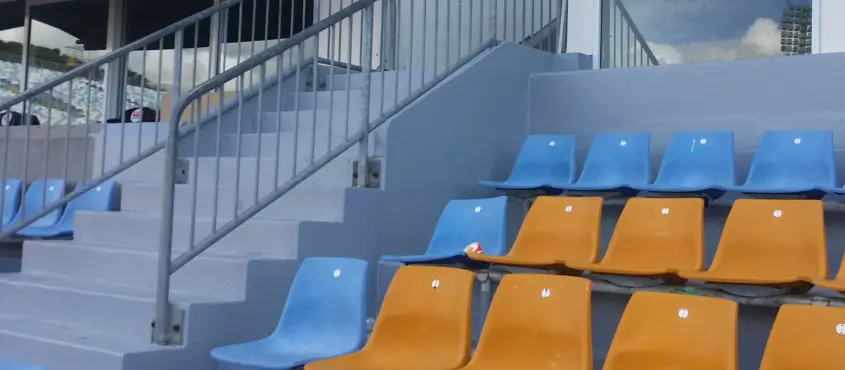

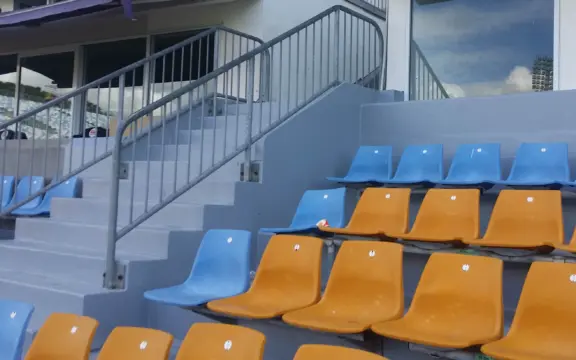

20170921 144651 16x10

Typical Applications

  • Balconies, walkways, ramps, and decks
  • Pedestrian traffic areas
  • Bridge decks (with asphalt overlays)
  • Below-grade slabs and sub-grade waterproofing
  • Channels, tunnels, and dam structures

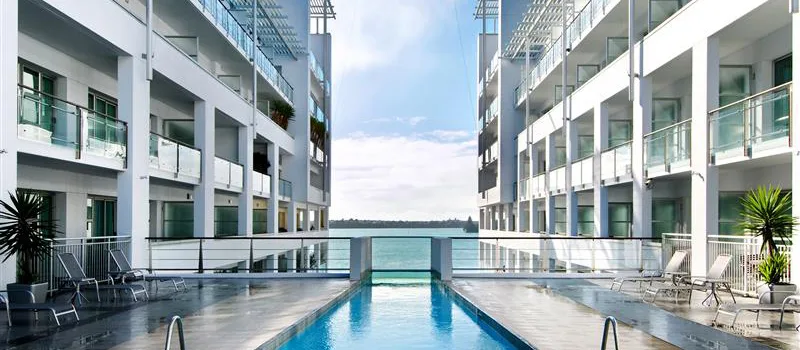

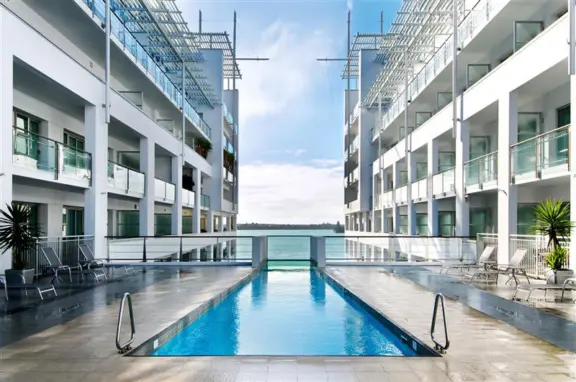

Hilton pool refurb matacryl cp

Certified Installation

Installed by trained, approved professionals to ensure quality and lasting performance.
