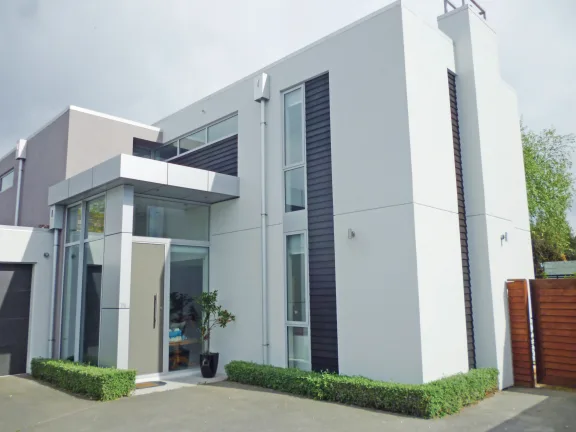

19a Taylors Ave 001 ret

Exterior High-Build Coatings & Textures

A range of high-build acrylic coating systems providing durable, weather-resistant façade finishes for residential, commercial, and light-industrial buildings.

These coating systems combine flexible bodycoat, reinforced textures, and protective topcoats to restore and upgrade existing façades. They are commonly specified for remedial work, refurbishment projects, and crack-repair systems where improved weatherproofing, durability, and uniform texture are required. The systems deliver reliable adhesion, UV resistance, and long-term weather protection on aged substrates across residential, commercial, and light-industrial buildings.

Smooth, sandy, and textures are available, along with elastomeric membranes for improved crack-bridging performance. When installed by certified Equus contractors, systems carry a 10-15 year warranty. Finishes can be custom tinted to match standard colour charts, allowing flexibility when updating existing façades.

These coatings are typically used on masonry, plaster cladding, reinforced plaster systems, and other stable substrates where a long-life, low-maintenance finish is required for renovation work.

Documents

P1050 Chevaline Coverflexx Crack Addressment System Specification
File not uploaded — please re-upload
RFS Waipu Butchery Northland Equus High Build Coating
RFS Christchurch YMCA Troweltexx Plaster System
TDS TrowelTexx 2000 Remedial System
TDS Chevaline Colourglaze System
TDS Chevaline Troweltexx 2000 Series
TDS Chevaline Epistixx
TDS Chevaline Stonewash
TDS Chevaline Coverall
TDS Chevaline Colourglaze

Key Product Benefits:

  • 100% New Zealand made
  • Proven durability with 40+ years of service history
  • Easy to apply and maintain
  • Wide range of tintable colours
  • Zero-odour application
  • Flexible systems to manage façade movement and crack-bridging
  • Compatible with reinforced plaster and waterproofing systems

Product Summaries

Chevaline Coverall – High-build Self-texturing Topcoat

A versatile acrylic coating for interior and exterior use. It functions as a bodycoat, topcoat, or primer when thinned. Coverall provides flexibility, early water resistance, and strong adhesion. It can be applied as a smooth or textured finish or used over an existing texture to create an eggshell appearance. Suitable for domestic, commercial, and light-industrial buildings. Recoat intervals: 8–10 years exterior.

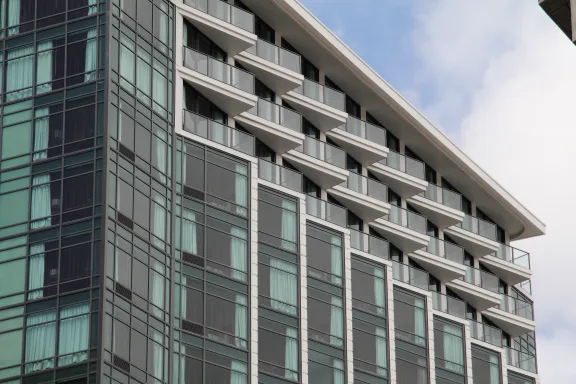

DPP 0006

Chevaline Stonewash – Flat, Smooth, or Sandy Topcoat

A high-build acrylic topcoat used where a flat matt finish is required. Suitable for application over stable building materials with a suitable primer or as part of a waterproof or textured system. The material is tough, lightfast, and designed for excellent adhesion. Available in flat, smooth, or sandy textures. Typical recoat interval: 8–10 years.

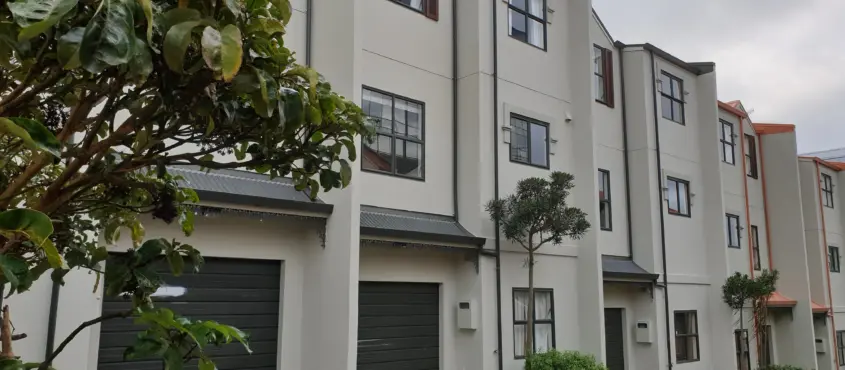

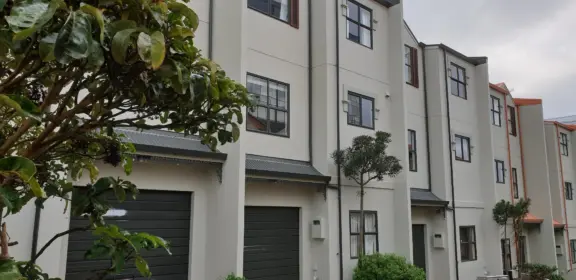

20200716 095732

Chevaline Colourglaze – Flexible Exterior Gloss Finish

A durable gloss-finish glaze coat for long-life performance in both exterior and interior environments. Used to extend service life or upgrade existing finishes by improving cleanability and reducing pollutant retention. Approved by AssureQuality for use in food, beverage, and dairy clean-room areas. Available in smooth or sandy textures and in matt, satin, or gloss finishes. Recoat interval: 10–12 years.

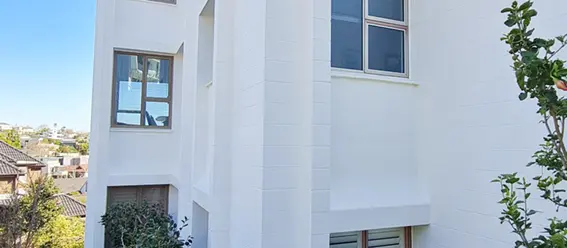

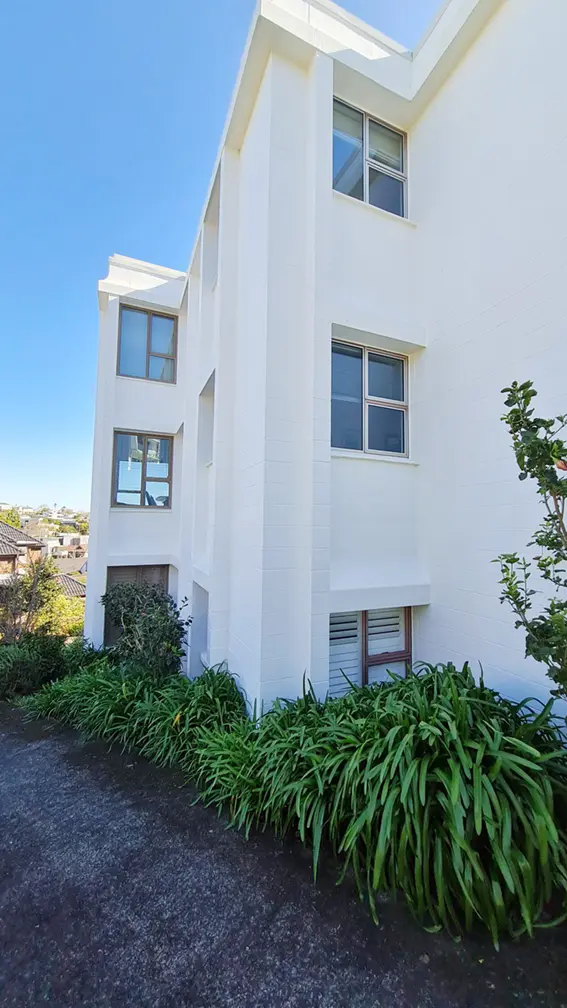

Brookfield 16yrs on 2

Chevaline Coverflexx – High-build Flexible Bodycoat

An elastomeric waterproof membrane used beneath Coverall, Stonewash, or Colourglaze topcoats. Designed to improve crack-bridging performance and enhance the weatherproofing of exterior façades.

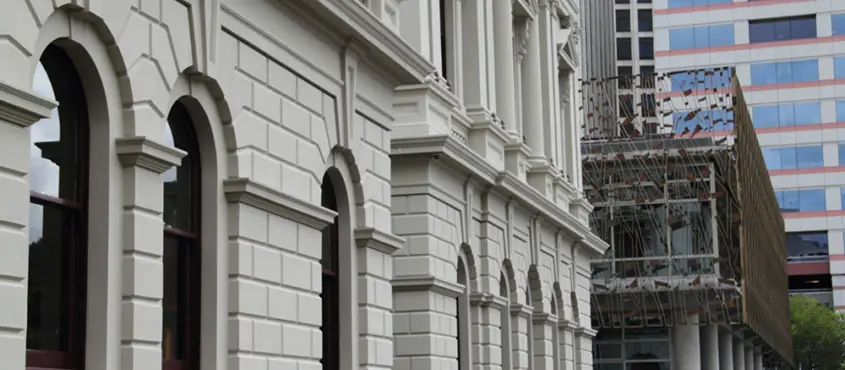

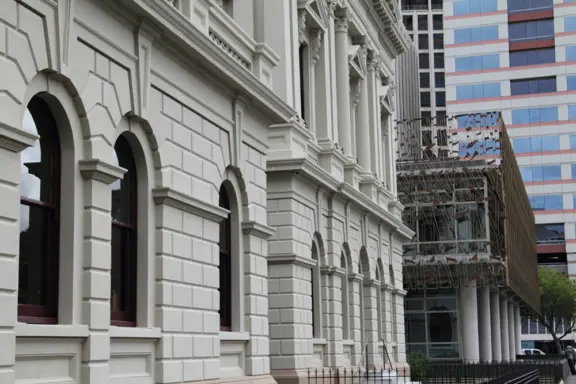

Coatings example5 1000px

Chevaline Troweltexx 2000 – Trowel-applied Textured Wall Finish

A synthetic acrylic finishing plaster used to produce durable exterior textures as part of a weatherproof coating system. Common in remedial works, it forms part of a reinforced plaster and mesh build-up used for façade crack repair and refurbishment in residential and commercial buildings. The system encapsulates the substrate with a flexible, water-resistant layer before the texture is overcoated with high-build Chevaline coatings for long-term durability. Available in:

  • Troweltexx Standard – 1mm aggregate
  • Troweltexx Medium – 2mm aggregate
  • Troweltexx Coarse – 3mm aggregate

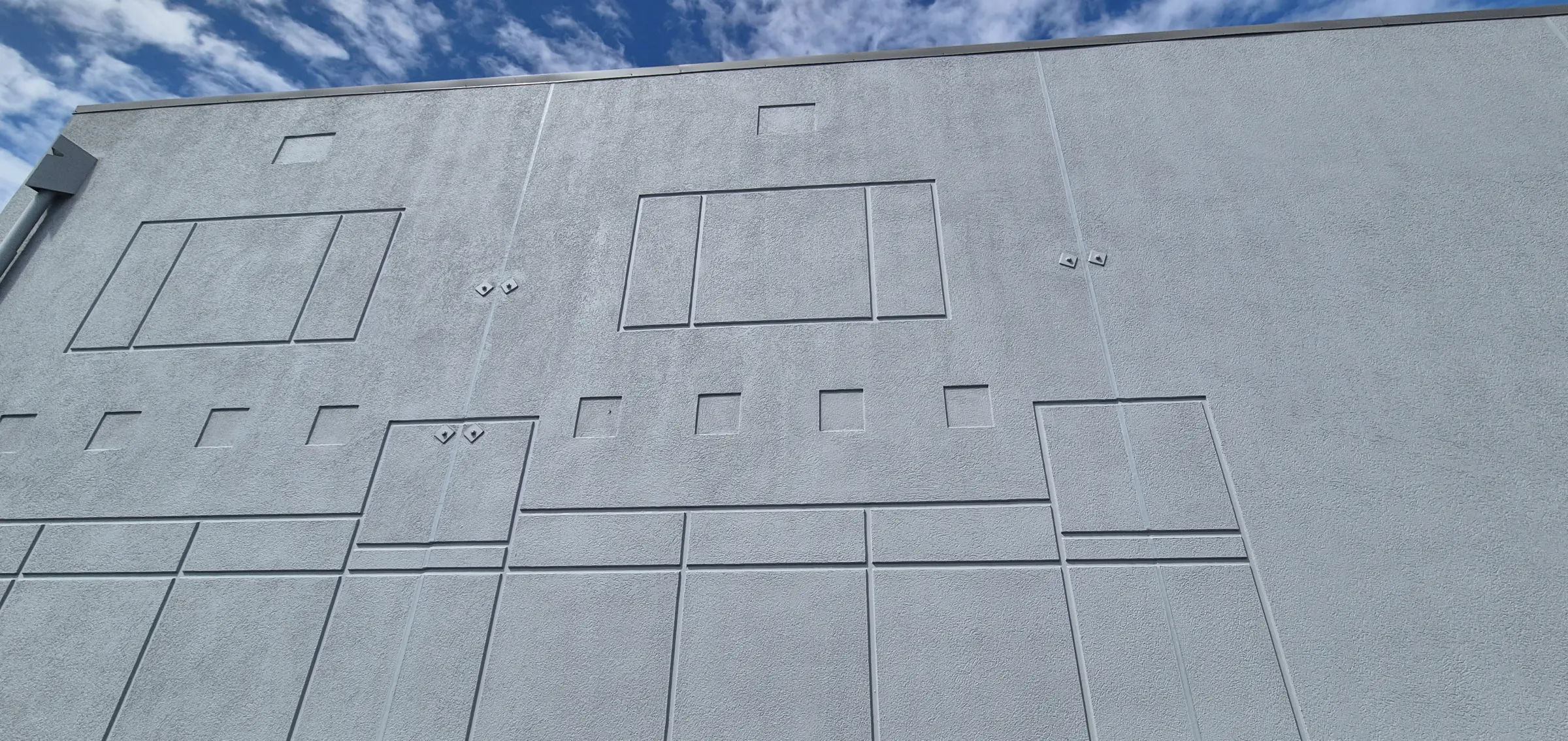

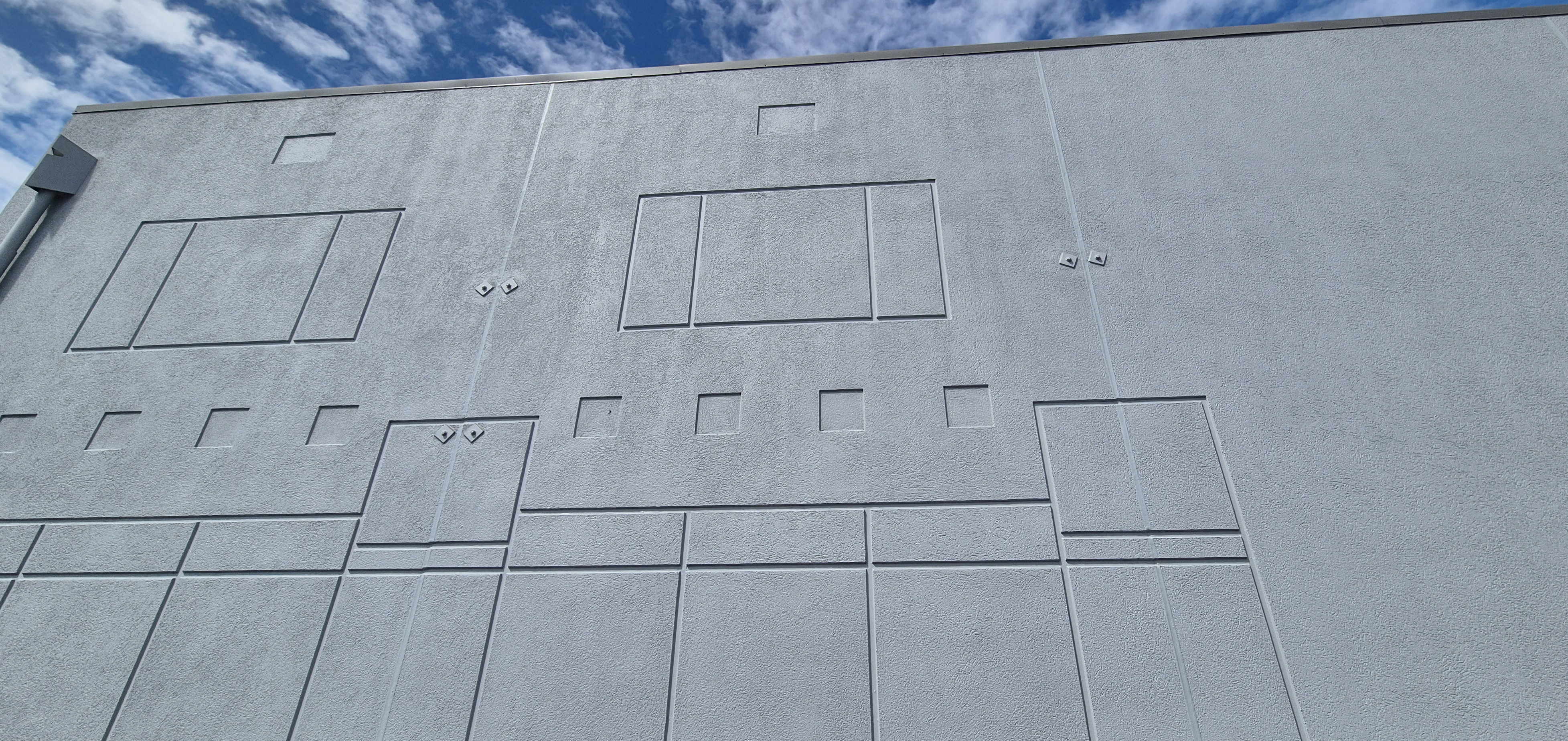

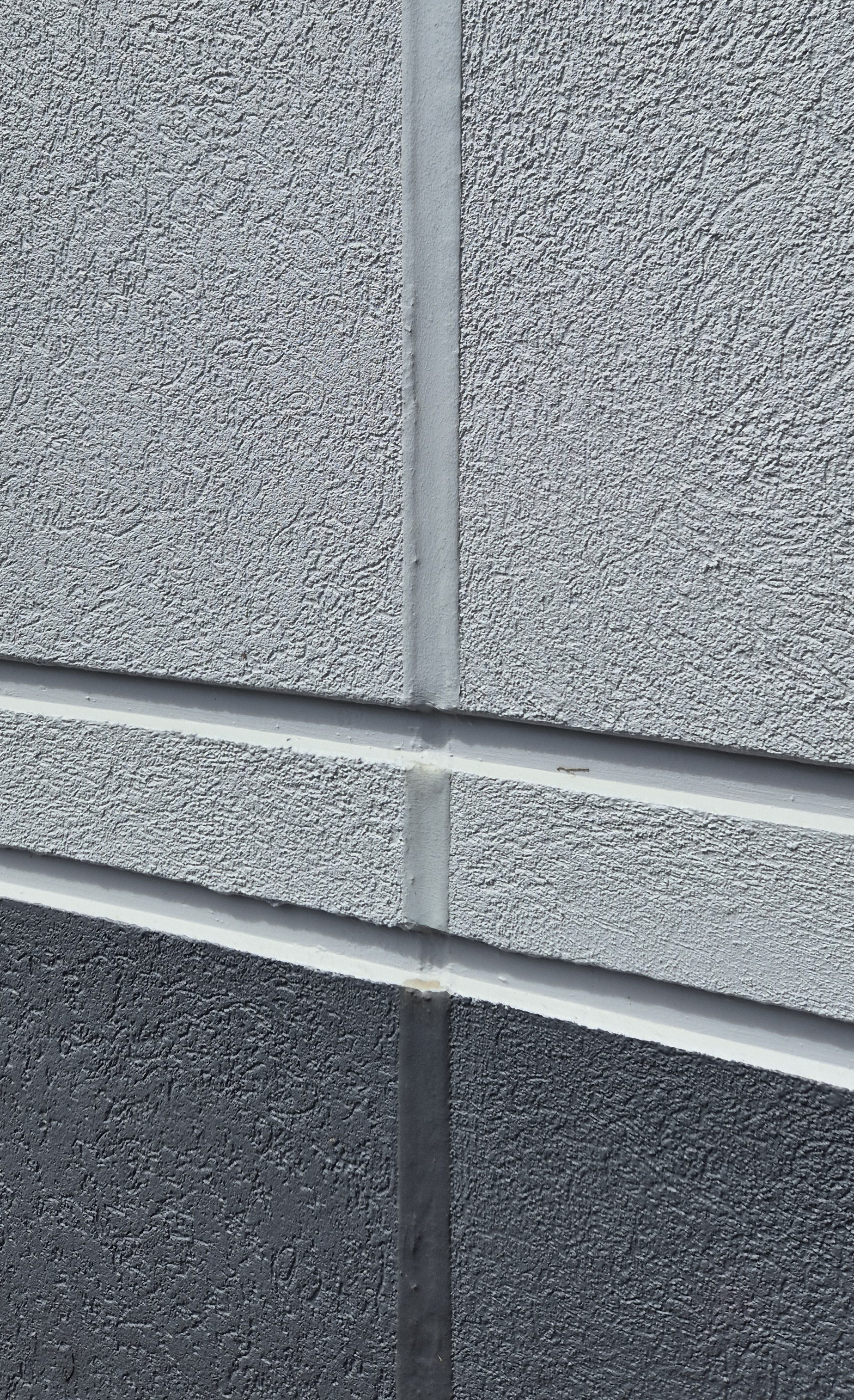

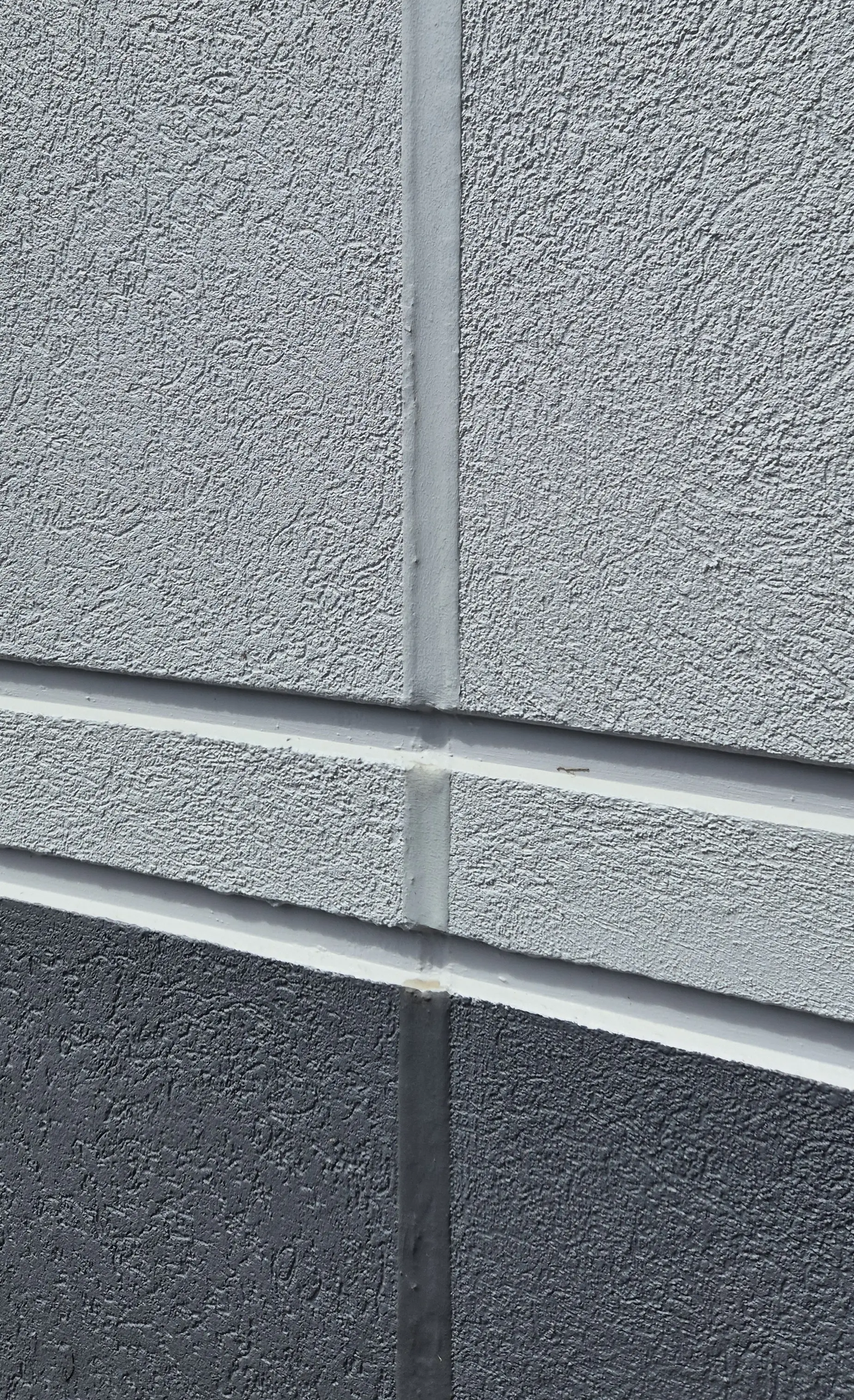

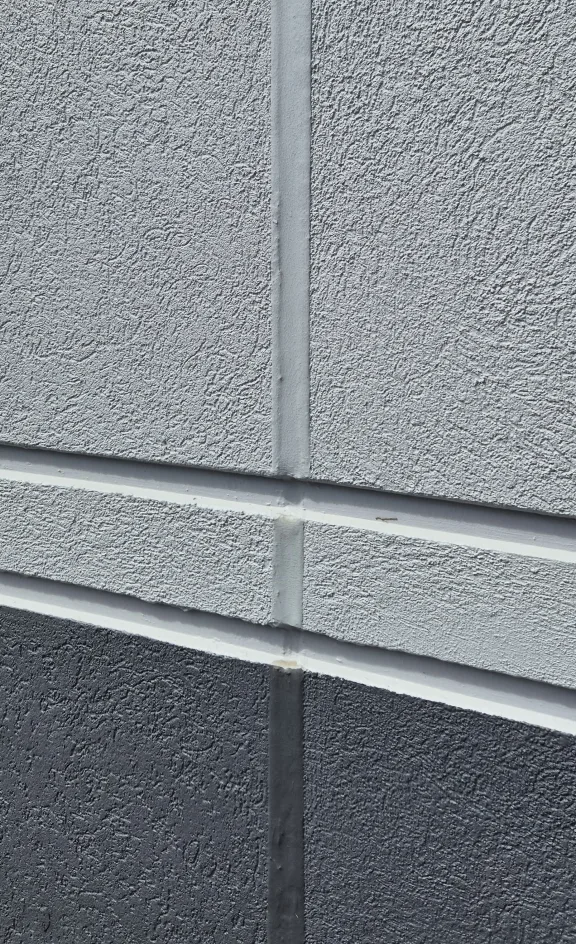

Fitzgerald ave troweltexx med 2

Troweltexx Medium - 2mm aggregate

Recoat intervals vary by finish type and exposure. Regular inspection helps maintain system performance. Textured and reinforced plaster systems require appropriate topcoating to ensure weatherproofing and colour stability. Refer to specific Equus technical documents for substrate preparation, primers, and full system build-ups.

Certified Installation

Installed by trained, approved professionals to ensure quality and lasting performance.
